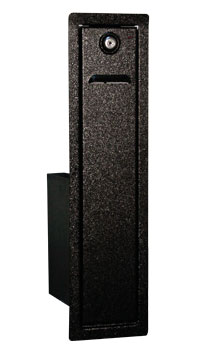

Description
- Compact design to fit in small mounting area.
- Comes with ticket bin to hold 4,000 tickets.
- Overall dimensions: 5.75" wide x 22.25" high.
- Cutout dimensions: 4.375" wide x 21" high.
- Ticket door includes ticket dispenser label set (42-1378-00)
Item can also be found in other follow sections:
Specifications
- Shipping Weight: 7.17 lbs.
- Shipping Length: 22.50 inches
- Shipping Height: 6.00 inches
- Shipping Width: 13.50 inches
- Reference Number: 99-70-203
Q & A
There are no questions at this time
Replacement Parts
Part Number
Description | Replacement Parts Last Revised: 11/27/95
Price
Part Number:
SCREW 4-40 X 3/4" PHMS TYPE F ZINC
Description:
SCREW 4-40 X 3/4" PHMS TYPE F ZINC
$0.41
Price:
$
0.41
Part Number:
Hex Head Kep Steel Nut 8-32
Description:
Hex Head Kep Steel Nut 8-32
$0.28
Price:
$
0.28
Part Number:
Lock Washer for Internal Lock for Over/Under Upstacker Validator Door
Description:
Lock Washer for Internal Lock for Over/Under Upstacker Validator Door
$0.65
Price:
$
0.65
Part Number:
Lock Assembly 7/8" with 1-1/8" Offset Cam for Over/Under Upstacker Validator Door
Description:
Lock Assembly 7/8" with 1-1/8" Offset Cam for Over/Under Upstacker Validator Door
$4.03
Price:
$
4.03
Part Number:
LED INDICATOR,PANEL MOUNT, RED W/RESISTOR FOR 12V
Description:
LED INDICATOR,PANEL MOUNT, RED W/RESISTOR FOR 12V
$10.76
Price:
$
10.76
Part Number:
Ticket Bin for Ticket Dispenser Door with 4000 Ticket Capacity
Description:
Ticket Bin for Ticket Dispenser Door with 4000 Ticket Capacity
$28.27
Price:
$
28.27
Part Number:
HARNESS F/TD DOOR TICKET LEVEL SWITCH & LED
Description:
HARNESS F/TD DOOR TICKET LEVEL SWITCH & LED
$17.82
Price:
$
17.82
Part Number:
Ticket Dispenser Label Set
Description:
Ticket Dispenser Label Set
$3.08
Price:
$
3.08
Part Number:
SCREW 6-32 X 3/16" PPH TFS TRI TRI-ZINC
Description:
SCREW 6-32 X 3/16" PPH TFS TRI TRI-ZINC
$0.33
Price:
$
0.33
Part Number:
Closed End Connector, 22-14 AWG
Description:
Closed End Connector, 22-14 AWG
$0.28
Price:
$
0.28
Part Number:
SWITCH ASSY, LEVEL SENSOR
Description:
SWITCH ASSY, LEVEL SENSOR
$8.06
Price:
$
8.06
