Pyramid Apex 5400 & 5600 Series Validators

Pyramid Apex 5400 & 5600
Series Validators

Accepts US $1, $5, $10, & $20 bills, including new currency
Lighted arrows on bezel and bill entry area
High security against fraudulent bills
Dual-stage optical anti-stringing
12VDC standard or optional 120VAC internal supply
High acceptance rate: 95% or greater
Acceptance Speed: Approximately 20 bills per minute
Pushbutton/LED on-board diagnostics
Automatic self-calibration, unit will never require user calibration
Various bezels available with pin-outs that are compatible with other manufacturers
Warranty: 2-Years, parts and labor

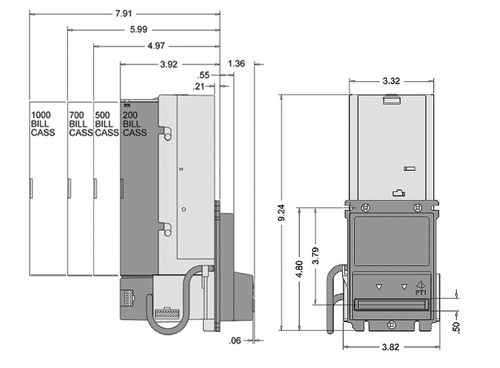

DIMENSIONS

Instruction Manual

Apex 5400 Series Validators

Part No.

Model

To Accept

Bill Capacity

Voltage

Price per ea.

42-3907-00

Apex-5400-U51-USA Upstacker

$1, 5, 10, 20 US

500

12V

42-3908-00

Apex-5400-U52-USA Upstacker

$1, 5, 10, 20 US

500

120V

42-3909-00

Apex-5400-SN1-USA

$1, 5, 10, 20 US

Stackerless

12VDC

42-3910-00

Apex-5400-SN2-USA

$1, 5, 10, 20 US

Stackerless

120VAC

Apex 5600 Series Validators

Part No.

Model

To Accept

Bill Capacity

Voltage

Price per ea.

42-3913-00

Apex-5600-U51-USA Upstacker

$1, 5, 10, 20, 50, 100 US

500

12V

42-3914-00

Apex-5600-U52-USA Upstacker

$1, 5, 10, 20, 50, 100 US

500

120V

42-3911-00

Apex-5600-SN1-USA

$1, 5, 10, 20, 50, 100 US

Stackerless

12VDC

42-3912-00

Apex-5400-SN2-USA

$1, 5, 10, 20, 50, 100 US

Stackerless

120VAC
