MEI Bill Validator AE-2400 Series

• Downstacker	Upstacker
  Compact Downstacker

  Advanced sensing technology allows high acceptance rate by accepting torn, wrinkled, faded, damp, dirty, limp, folded or mutilated bills
• Non-contact optical sensors eliminate pinch rollers offering a smooth bill path that reduces jams
• Low Maintenance: Streamlined recognition system sensors are embedded under the smooth plastic bill path and the magnetic pinch roller has been eliminated dramatically reducing debris buildup and the need for cleaning
• Security: Fully-encased optical sensors check paper type and the printing on both sides of the bill, while optical cross channel sensors examine the bill path for foreign objects such as clear tape or strings. This bill validator rejects most of the known counterfeits accepted by ordinary bill acceptors - through the use of multiple wavelength optical sensing and sophisticated data processing
• Flash memory programmable; as more US bill designs are released, the Validator can easily be updated in the field
• Fully accessible bill path
• Lighted bezel with easy-to-read diagnostic lamps
• Easy-to-use dip switch settings and coupon configuration
• Holds rejected bills
• Self-generated jam-clearing function
• Fully contained control box
• Expandable upstacker or downstacker magazine
• Lightweight unitized design for applications where cube space is a premium
• Locking hasp available
• Accepts bills in any direction
• Two (2) Year Warranty
• Hasp for Validator also avaliable


MEI AE 2400 Bill Validator Specifications (PDF)



MEI Customer Testimonial

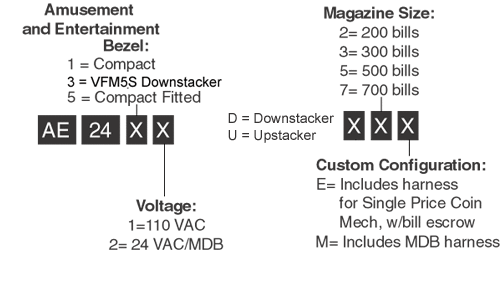

Configuration Key

Overall Dimensions View

The instruction manual for the
AE-2400 series is in adobe
PDF file
