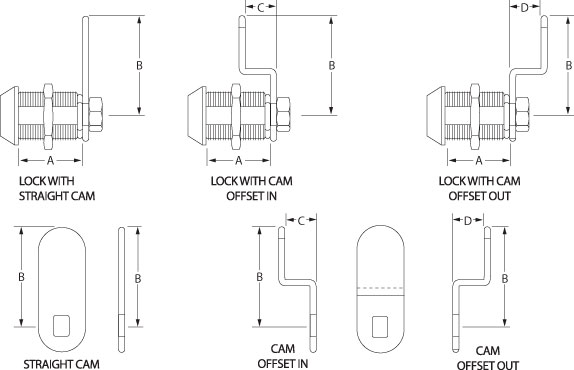

How To Measure Cams and Cam Locks



A dimension is the cylinder length. Measure from the back of the lock head to the front of the cam.
B dimension is the cam length. Measure from the center of cam hole to tip of cam
C or D dimension is the cam offset
