MakVision 25" Tri-Mode Monitor

25" flat-screen monitor will work in Standard Resolution (CGA), Medium Resolution (EGA) or VGA Resolution
Get your EGA games back out on the street making money again
Unit will also work with older Golden Tee games (Golden Tee, Golden Tee Fore and Golden Tee Fore 2002-2005)
Universal mounting frame that will fit in most cabinet configurations
Monitor can be used with most standard form fitted 25" bezels
UL Approved
1-Year warranty
Power cord sold separately (49-5179-00)

Click Here for Additional Product Support

CRT Size	25" (24.8 viewable area) FS (Full Square)
Dot Pitch	0.8mm
Video Input	Analog 0.7VPP (75Ω)/TTL 2.5-5.0VPP (2KΩ)
Sync Input	TTL Level Positive/Negative/Separate or Composite
H-Frequency	15/24/31KHz, Auto
V-Frequency	47-70Hz
Bandwidth	65MHz
Resolution	640 x 480 max
Power Supply	100-240VAC 50/60Hz
Power Consumption	100W
Signal Connector	15-pin D-sub male connector
Weight	71 lbs
Approvals	TUV, S-Mark & UL

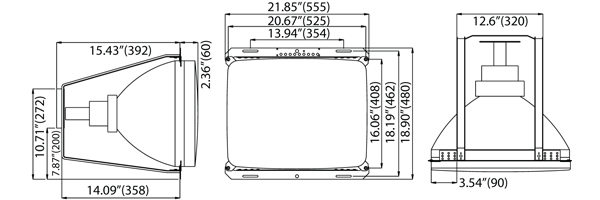

DIMENSIONS

Part Number

Description

Price per ea.

49-3056-20

MakVision 25" Tri-Mode Monitor

49-5179-00

Monitor Power Cord

49-2728-00

Replacement Chasis
