Gun Housing Set for Big Buck Hunter Pro Gun

Gun Parts For
Big Buck Hunter Pro Gun


47-4457-00	606-00069-01	47-4460-01

47-4458-00	474458B	47-4460-02

Used on Big Buck Hunter Pro and Safari
Not interchangeable with Suzo-Happ guns (except for 96-0068-00 and 95-4142-10)

INTERIOR PARTS

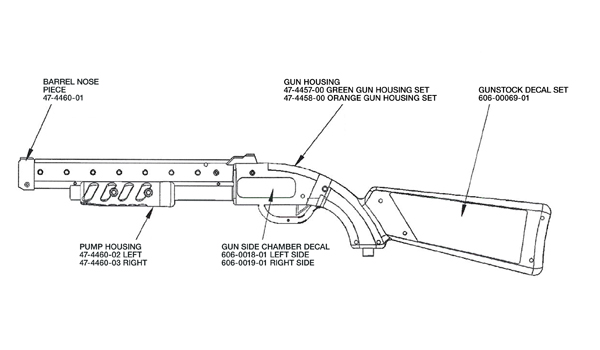

EXTERIOR PARTS

EXTERIOR PARTS

Part Number

Price per ea.

47-4457-00

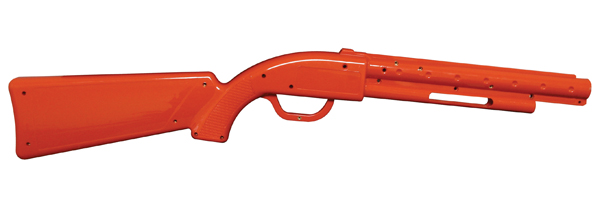

Gun Housing Green, Set Includes Left & Right Halves

47-4458-00

Gun Housing Orange, Set Includes Left & Right Halves

47-4460-01

Barrel Nose Piece

47-4460-02

Pump Housing Left

47-4460-03

Pump Housing Right

606-0018-01

Gun Side Chamber Decal Left Side

606-0019-01

Gun Side Chamber Decal Right Side

606-00069-01

Decal Set, Set Includes enough Decals for 3 Guns

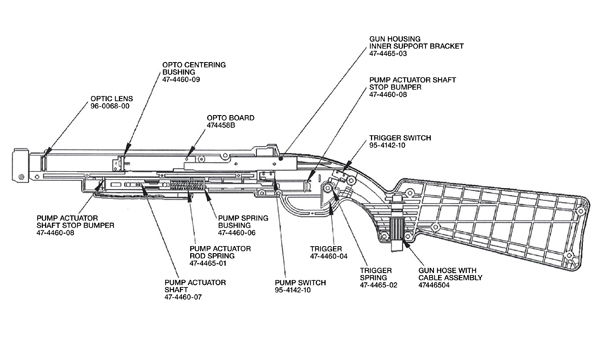

INTERIOR PARTS

Part Number

Price per ea.

96-0068-00

Optical Lens

47-4460-09

Opto Centering Bushing

474458B

Opto Board

47-4465-03

Gun Housing Inner Support Bracket

47-4460-08

Pump Actuator Shaft Stop Bumper

95-4142-10

Trigger Switch & Pump Switch

47446504

Gun Hose with Cable

47-4465-02

Trigger Spring

47-4460-04

Trigger

47-4460-06

Pump Spring Bushing

47-4465-01

Pump Actuator Rod Spring

47-4460-07

Pump Actuator Shaft

47-4460-08

Pump Actuator Shaft Stop Bumper
