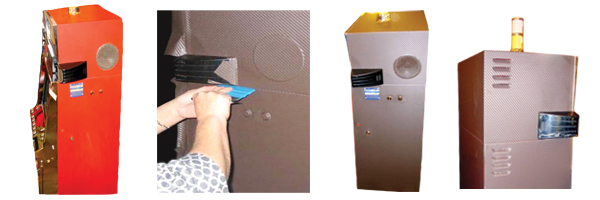

Cabinet Application Process - Before & After |
Update the Look of Your Slot Floor
Cover your slot machine cabinets with 3M™ DI-NOC™
- High-quality, lightweight, self-adhesive, vinyl film laminate
- 75% faster installation than traditional laminates resulting
in less
down time and more profits
- Over 600 patterns and finishes to choose from
- Used in casinos as well as throughout Japan, Europe, and
Asia Pacific as an architectural finish
- Ideal for high limit areas
Why Choose DI-NOC™?
- Recovering of machines can be completed right on the
casino floor.
That cannot be done with traditional lamination.
- No need to move your machine off the casino floor
- No external items such as locks, speakers, etc. on the machine
need to be removed for installation
- Easily conforms around radius and surface edges with a heat gun;
even into vented areas
- Minimal disruption to your casino floor
- No noise or odor
- Faster installation and less down time means more profits
- Refurbish a machine in approximately 40 minutes on the
casino floor
Features:
- 3M™ Comply™ Adhesive
- 8.3 Mils Thick PVC
- Stain Resistant
- Light Weight
- Non-Flammable
- Minimal Mess
- Proven Performance
- Anti-Bacterial (PS/DF)
Benefits:
- Easy Application
- Durable
- Easy to Clean
- Easy to Handle
- Safe to Use
- Apply on Site
- Peace of Mind
- Healthy Environment
How do I know how much DI-NOC™ to order?
- Measurements for DI-NOC™ should be made in square feet NOT linear feet
- Measure the length and width of each side of your machine, adding an additional 1” “bleed” on both the top and bottom for overage
- Rolls are 4’ in width and CANNOT be ordered in widths less than that. The length with vary per style.
- Add the total square footage of each side to get the total square footage per machine
- For OEMs, use of a Plotting Program will insure the least amount of product waste
How much DI-NOC™ is needed on common machines found on the casino floor?
IGT TrimLine: 36 sq. ft.* |
Bluebird Round Top WMS: 38 sq. ft.* |
Aristocrat Mark 6: 40 sq. ft.* |
Atronic: 30 sq. ft.* |
Bally CineVision: 72 sq. ft.* |
Bally S9000 and M9000: 36 sq ft.* |
*Please note that all the above measurements are approximates only.
Final measurements are the responsibility of the customer as the area being
covered on the machine will vary depending on the customer’s preference.
How is DI-NOC™ sold?
- DI-NOC™ is sold per square foot
- A minimum of 20 square feet is required for all orders
- Sold in 5 lineal foot increments only
ie. 20, 40, 60, 80, etc sq. ft.
- Orders placed for less than a full roll will always come 4' in width.
- Price breaks apply to the purchase of a full roll
- A standard roll size is 4’ X 164’. Some rolls are available in different factory lengths.
- Prices vary by color and size of roll.
- A primer is needed for all leading edges. (See Part No. 29-0631-00)
Can I order a custom color to match a finish in my casino?
- Yes. There is a 20 roll minimum.
Can I apply a layer of DI-NOC™ on another layer DI-NOC™ Film?
- Yes, one or more layers of DI-NOC™ Film can be applied to the first layer of DI-NOC™ Film.
It is not recommended to apply more than 3 layers on top of each other.
Are there temperature limitations?
- Recommended application temperature range is 61-82° F (68-77° F is preferred)
- Store film in a clean, dry environment; free from direct sunlight and at an ambient temperature below
100° F. Use within one year of purchase
- The film was tested on an aluminum plate and exposed to temperatures ranging
from –22° F to 149° F for 12 days. No peeling or discoloration resulted
How do I get DI-NOC™ installed?
Full Professional Installation
- Installation is quoted out on a project by project basis depending upon the total
number of machines and the location of those machines. Installation costs would
also include any travel expenses incurred by the installer.
With Your Own Trained Employees
- Training costs $995.00 per person. This includes classroom
instruction and materials.
- Training can be done on site or in the DI-NOC™ training
facility located in Baltimore, MD.
- Travel expenses are the responsibility of the customer.
- On-site training is available for up to 5 students per class.
Are there other applications and markets for this product?
The Possibilities are endless…
- Elevators
- Walls & Columns
- Partitions
- Galleries & Museums
- Dining Areas
- Offices
- Escalators
- Casinos
- Cruise Ships
- Lobbies
- Doors & Hallways
- Ceilings
|
