Starpoint 26RMS Reel Mechanism

The 26RMS is a high security “Reel Movement Sensing” (RMS) reel mechanism, of a metal fabricated, modular design.
Reel Movement Sensing is required by GLI regulations
Utilizes molded encoder technology to detect any physical movement of the reel by external forces, thereby offering high levels of security
Molded encoder is specifically designed for use with either 11 symbol or 22 symbol reel bands
Powerful 24v, 200step Bi polar motor, gives higher resolution and better temperature control
Available with and without motor driver circuits fitted
Three standard reel widths available, 62.8mm, 79mm and 88.5mm. which can all be back lit with white or RGB illumination
LED boards are fitted with constant current regulators, which allow for direct drive or PWM
Robust metal construction with a floating connector that can be used in conjunction with the Starpoint plastic connector mount, or align directly into the cabinet back plane
Fully tested and assembled
Minimum order quantity required
Available only for custom OEM applications
Due to Gaming regulations, this product can only be sold to qualified OEM manufacturers
Contact your sales representative for more details

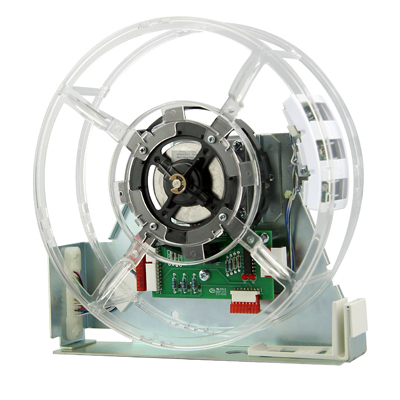

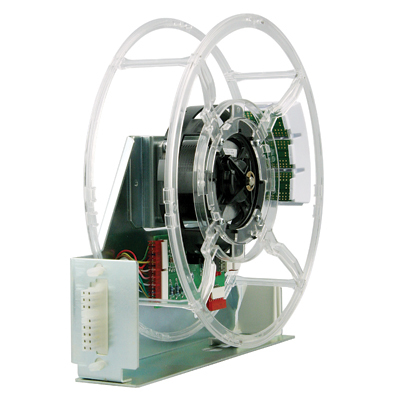

Side View	Back View
