Starpoint 12RMS Reel Mechanism

The 12RMS is a high security “Reel Movement Sensing” (RMS) reel mechanism, of a plastic modular design
Reel Movement Sensing is required by GLI regulations
Utilizes encoder strip technology to detect any physical movement of the reel by external forces, thereby offering high levels of security
Powerful 200-step motor, in either a 12v or 24v version
Four standard reel widths available, 56mm, 66mm, 79.5mm and 90mm, all of which can be backlit using various illumination options
Three standard encoder strips available for use with different symbol numbers:

1) 12/24 symbol

2) 20/25 symbol

3) 16/18/22 symbol

A unique Starpoint quick release foot system is available for fixing the reel mechanism to the cabinet which allows for the easy removal of the unit without the aid of tools
Fully tested and assembled
Minimum order quantity required
Available only for custom OEM applications
Due to Gaming regulations, this product can only be sold to qualified OEM manufacturers
Contact your sales representative for more details

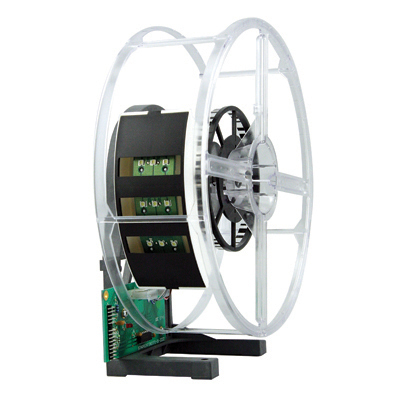

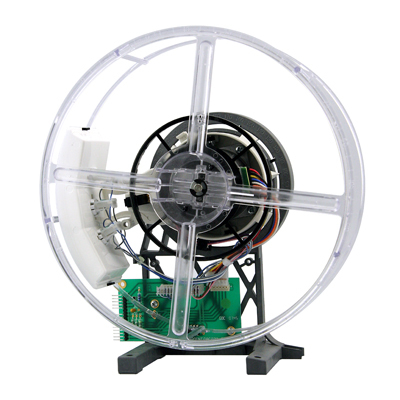

Side View	Back View
