Evolution Coin Hopper
Evolution
Coin Hopper
exploded view & dimensions
|
 |
|
|
|

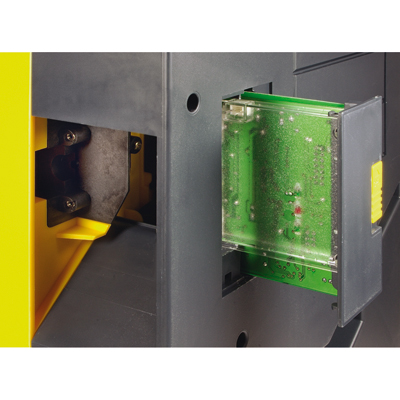

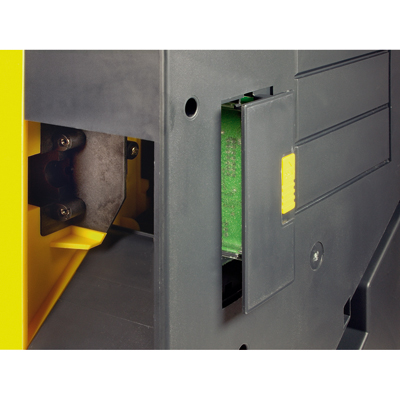

Convenient cleaning of the coin optics by taking out the electronic and optic board without the use of tools. |
| |
| |
|

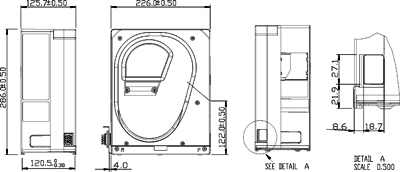

dimensions |
EMC Approval:
- EN 55014-1 (2000) + A1 (2001) + A2 (2002):
Electromagnetic Compatibility: Requirements for household appliances, electric tools and similar apparatus -
Part 1: Emission.
- EN 55014-2 (1997) + A1 (2001):
Electromagnetic Compatibility: Requirements for household appliances, electric tools and similar apparatus -
Part 2: Immunity - Product Family Standard.
- EN 61000-3-2 (2000):
Electromagnetic Compatibility:
Part 3-2: Limits - Limits for Harmonic current emissions (equipment input current < 16A per phase).
- EN 61000-3-3 (1995):
Electromagnetic Compatibility:
Part 3: Limits - Section 3: Limitation of voltage fluctuations and flicker in low-voltage supply systems for equipment with rated current < 16A.
EMC Approval:
- 47CFR15: Radio Frequency Devices

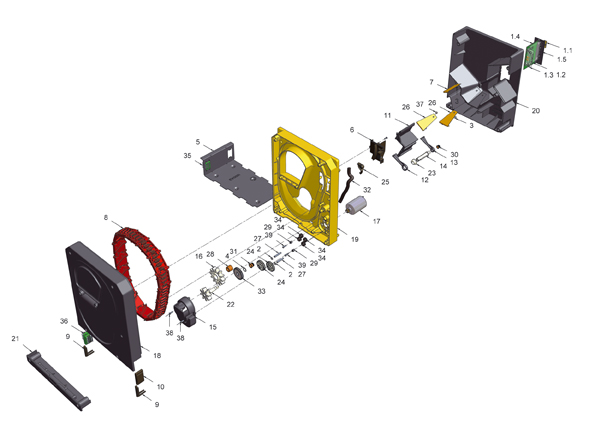

Exploded View - Key Below |
| KEY |
Part Number |
Description |
Pcs |
| 1 |
EV0037 |
PCB Bracket Assembly |
1 |
| 1.1 |
EV0010 |
Locking Slide |
1 |
| 1.2 |
EV0011 |
PCB Cover |
1 |
| 1.3 |
EV0012 |
Prisma |
1 |
| 1.4 |
EV0013 |
PCB Standard |
1 |
| 1.5 |
EV0026 |
PCB Door |
1 |
| 2 |
0.35X4.3X8 |
0.35X4.3X8 Washer |
2 |
| 3 |
0.5X3.3X8 |
0.5X3.3X8 Washer |
3 |
| 4 |
0.5X8.2X12 |
0.5X8.2X12 Washer |
1 |
| 5 |
EV0001 |
Mounting Bracket |
1 |
| 6 |
EV0005 |
Coil Mounting Bracket |
1 |
| 7 |
EV0006 |
High Level Plate |
1 |
| 8 |
EV0007 |
Track Plate |
16 |
| 9 |
EV0008 |
Plug Adaptor Bracket |
2 |
| 10 |
EV0009 |
Port Blanc |
1 |
| 11 |
EV0014 |
Coin Shaker |
1 |
| 12 |
EV0015 |
Shaker Arm A |
1 |
| 13 |
EV0016 |
Shaker Arm B |
1 |
| 14 |
EV0017 |
Camshaft |
1 |
| 15 |
EV0018 |
Gearbox Cover |
1 |
| 16 |
EV0019 |
Output Gear |
1 |
| 17 |
EV0020 |
Motor 24vdc and gear |
1 |
| 18 |
EV0022 |
Rear-Cabinet |
1 |
| 19 |
EV0023 |
Middle-Cabinet |
1 |
| 20 |
EV0024 |
Front-Cabinet |
1 |
| 21 |
EV0025 |
Bottom Cover |
1 |
| 22 |
EV0027 |
Idler Gear |
1 |
| 23 |
EV0028 |
Camshaft Bushing |
1 |
| 24 |
EV0029 |
Gear 12-34T |
2 |
| 25 |
EV0030 |
Cable-Clamp |
1 |
| 26 |
EV0031 |
Low Level Plate |
2 |
| 27 |
EV0032 |
Gear Shaft |
2 |
| 28 |
EV0033 |
Gear Bushing |
1 |
| 29 |
EV0034 |
Screw Bushing |
2 |
| 30 |
EV0035 |
Cam Bushing |
1 |
| 31 |
EV0036 |
Idler Gear Bushing |
1 |
| 32 |
EV0039 |
Cable with Connector |
1 |
| 33 |
EV0040 |
Gear 40T |
1 |
| 34 |
EV0041 |
Rubber Roller |
4 |
| 35 |
EV24-11 |
Male Socket 12 Pin |
1 |
| 36 |
EV24-11-1 |
Female Socket 12 Pin |
1 |
| 37 |
LOCK PIN |
Lock-Pin |
3 |
| 38 |
PHC M308N |
Screw |
3 |
| 39 |
PHC M310S |
Screw |
2 |
|
|
