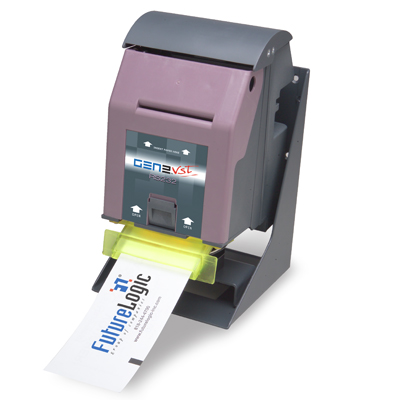

The vertical configuration of the GEN2 VST® TITO printer is compact and is specifically designed for space-saving slim-top gaming machines. Like the GEN2™ printer, the GEN2 VST printer offers improvements such as ITH® (Intelligent Ticket Handling) technology, IntelligentBezel™ system, ProColor™ printing, and more.
The ITH technology sets the printer apart from competing TITO printers by making the “cashout ticket” available ONLY after the ticket is fully printed internally and automatically burst. To improve the printer’s reliability further, the IntelligentBezel feature detects for obstruction near the bezel and reduces paper jams, by waiting for a clear path before a ticket is ejected.
In addition to the game port (RS232 or NetPlex), a separate port is provided for convenient firmware upgrades without the need to remove the printer from the slot machine.
FutureLogic GEN2 VST® Printer Data Sheet (PDF)
Features
ITH® (Intelligent Ticket Handling)
Makes Ticket Available ONLY after Fully Printed Internally & Automatically Burst
IntelligentBezel™ System
Paper Jam Reduction via Blocked Bezel Detection
Award-Winning Printer
Most Decorated Printer in Gaming
Superior Electro-Mechanical Design
High Reliability and Easy Maintenance
ProColor™ Printing
Readily Available 2-Color Printing Technology
Expanded Graphics Memory
Stores Hundreds of Clip Art Objects and Thousands of Graphic Templates
Hot Swappable
Printer Removal Without Powering Down
Technical Specifications
General
Dimensions: (W x D x H) 130mm x 159mm x 229mm
Weight: 5 lbs.
Power Requirements: 24Vdc @ 2.7A
Sensors: Paper Low, Paper Out, Printer Drawer Open,
Ticket Taken, Ticket Jam, Ticket in Chute, Black
Mark (Includes a Host Controllable Buzzer)
Printing Speed: 90mm/Second (3.5"/Second)
Print and Present: 2.2 Seconds
Printing Width: 62mm (true near-edge printing)
Storage: 200 Tickets
Resolution: 8 dots/mm (203 dpi)
Firmware: Application in Memory is Reprogrammable
(via Flash BIOS)
Self Test: Yes
Page Mode: Full Page Mode Printing (Simultaneous 4
Orientation Printing: 0°, 90°,
180°, 270°) Line and Box Draw Printer
Resident Bitmap Graphics
Printer Resident (Stored in Flash) Graphics
Paper Loading: Manual
Paper Feed: Automatic
Media: Direct Thermal, Top Coated, Fanfolded and
Perforated
Paper Specification: 66mm W x 156mm L
4.5 mil, 1 Color/2 Colors
Bezel Control: Two High Current Ticket Printing Bezel
Control
User Interface: 4 LED Indicators, Paper Advance Button
Upgrade Port: Allows for Printer Upgrades via Main
Interface or RS232 Side Port
Hot Swappable: 100%
Printing Resources
Template Capacity: 8Mb; Stores hundreds of clip art objects &
thousands of graphic templates
Graphic Storage: 6Mb
Colors: Red on Black and Blue on Black are
available. Other colors can be supported as the
print media becomes available. Color selection
is controlled through the TCL™ language.
Characteristics
Printer Languages: TCL Printer Language (Page Description
Language) Subset of ESCP2
Fonts: 4 (5.5 cpi, 7.5 cpi, 10 cpi, 20 cpi)
Font Scalability: May Be Independently Scaled from 1x – 7x
in Both Height and Width
Bar codes: Interleaved 2 of 5, Code 39, UPC-A, UPC-E,
UPC-E+2, UPC-E+5, Codabar, EAN-13,
EAN-8, Code 128, MSI
Memory: 1MB with 128K RAM
Interface
Communications Bi-directional RS232C, Full Handshaking Set
Netplex
Environmental
Operating Temperature 5°C to 50°C
Storage Temperature -20°C to 75°C
Operating Humidity 5 to 85% RH non-condensing
Reliability
Maintenance: Annual Print Head Cleaning Required
Print Head Life: 50km Minimum (320,000 Tickets Based on
US Currency Size)
Certifications: ISO 9001, CE Certified, RoHS, UL
|
