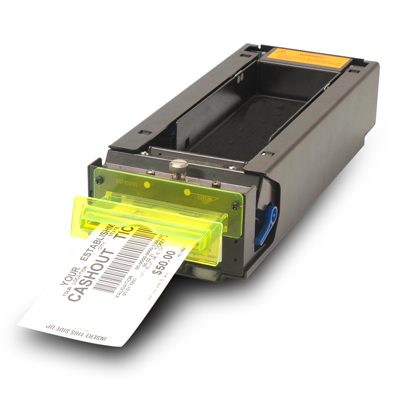

The innovative PSA-66-ST thermal printing subassembly was created specifically to meet the requirements of cashless gaming machines and has single-handedly transformed the gaming industry into what it is today. The PSA-66-ST requires less maintenance and is more reliable than any impact technology printer. While the printer operates for the entire service life of the gaming machine, no consumables other than paper are ever needed.
And, unlike sheet fed paper, the fanfold, perforated voucher paper stock loads quickly and provides a consistent and clear output, making the PSA-66-ST ideal for printing bar codes containing security and other critical data.
In addition to the higher reliability and quality, the PSA-66-ST was designed to readily install into most gaming machines and is offered with a variety of bezels for adapting to various mechanical design parameters.
FutureLogic GEN2™ Printer Data Sheet (PDF)
Features
- Undisputed Market Leader
- Advanced Printer Technology
- High Reliability & Quality
- Low Maintenance
- Two-Year Factory Warranty
Technical Specifications
General
Dimensions: (W x D x H) 114mm x 286mm x 68mm
Weight: 7 lbs.
Power Requirements: 24Vdc @ 2.7A
Sensors: Paper Low, Paper Out, Ticket Taken, Ticket Jam, Ticket in Chute, Black Mark (Includes a Host Controllable Buzzer)
Printing Speed: 75mm/Second (3"/Second)
Print and Present: 2.2 Seconds
Printing Width: 62mm (true near-edge printing)
Storage: 200 Tickets
Ticket Tray: Interchangeable, 400, 600 Ticket Tray
Resolution: 8 dots/mm (203 dpi)
Firmware: Application in Memory is Reprogrammable (via Flash BIOS)
Self Test: Yes
Page Mode: Full Page Mode Printing (Simultaneous 4 Orientation Printing: 0°, 90°, 180°, 270°) Line and Box Draw Printer Resident Bitmap Graphics Printer Resident (Stored in Flash) Graphics
Paper Loading: Automatic Hands Free
Paper Feed: Manual
Method: Direct Thermal, Top Coated, Fanfolded and Perforated
Width: 66mm
Length: 156mm
Thickness: 4.5 mil, 1 Color/2 Colors
Bezel Control: Two High Current Ticket Printing Bezel Control Ports
User Interface: 2 LED Indicators, Paper Advance Button
Promotional Printing
Template Capacity: Up to 30 Coupons
Graphic Storage: 256k
Characteristics
Printer Languages: TCL Printer Language (Page Description Language) Subset of ESCP2
Fonts: 4 (5.5 cpi, 7.5 cpi, 10 cpi, 20 cpi)
Font: Scalability May be Independently Scaled from 1x – 7x in Both Height and Width
Bar codes: Interleaved 2 of 5, Code 39, UPC-A, UPC-E, UPC-E+2, UPC-E+5, Codabar, EAN-13, EAN-8, Code 128, MSI
Memories: 512k Flash & 128K RAM
Interface
Communications: Bi-directional RS232C, Full Handshaking Set Netplex
Environmental
Operating temperature: 0°C to 70°C
Storage temperature: -20°C to 85°C
Operating humidity: 5 to 95% RH
Reliability
Maintenance: No User Maintenance Required
Printer Head: Completely Removable with Quick Release Bars
Print Head Life: 50km Min. (320,000 Tickets Based on US Currency Size)
|
| Contact your Suzo-Happ Sales Representative for Pricing |
| Part Number |
|
|
FutureLogic PSA-66-ST Printer |
|
