CouponXpress™ builds on the technology that has made FutureLogic the leading manufacturer of TITO printers – bringing all of the popular GEN2 Universal™ printer’s features, functions and flexibility from the game to the cashier’s cage, hotel front desk, unattended kiosks and other transaction points.
Compatible with traditional gaming protocols as well as new USB commu¬nications, CouponXpress enables fast, convenient TITO transactions, such as ticket purchases, consolidation, or replacement of torn or crumpled tickets. It can also be used to distribute targeted promotional coupons at different venues – such as at the concierge desk, gas station, gift shop, or hotel rooms – to reward, retain or recruit casino patrons.

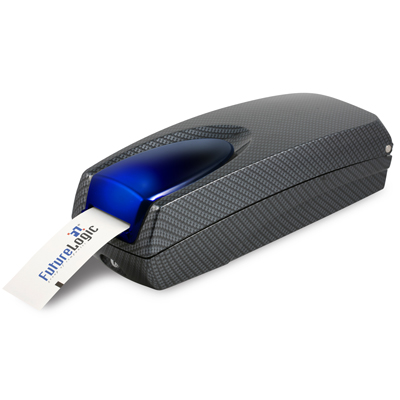

Housed in an attractive and rugged cabinet, CouponXpress provides the convenience, flexibility and reliable performance needed for effective coupon campaigns. Fast 3.5 inch per second printing, large ticket stor¬age capacity, and ITH® (Intelligent Ticket Handling) technology combine to maximize CouponXpress’ uptime and reliability. Additionally, high-resolution two-color printing and storage for hundreds of clip art objects and thousands of graphic templates facilitates ticket customization and branding.
FutureLogic Eclipse™ Universal Printer Data Sheet (PDF)
Features
Universal Communications
Can be Configured to Handle 2 Communication Ports - USB and RS232 (Ethernet Optional)
Reliable Performance
ITH® (Intelligent Ticket Handling) technology virtually eliminates ticket jams by making ticket available only after it’s been fully printed and burst
Superior Electro-Mechanical Design
High Reliability and Easy Maintenance
ProColor™ Printing
Exceptional 2-Color Imaging Technology
Fast Printing Speed
Prints and Presents in 2.2 Seconds
Large Fill Capacity
Stores up to 300 Tickets
Expanded Graphics Memory
Stores Hundreds of Clip Art Objects and Thousands of Graphic Templates
Technical Specifications
General
Dimensions (W x D x H): 147.3mm x 372.1mm x 111.2mm
Weight: 1.23 kg (2.7 lbs.)
Power Requirements: 110Vac via 24Vdc @ 2.7A External Power Supply (Included with Unit)
Sensors: Paper Low, Paper Out, Printer Drawer Open, Ticket Taken, Ticket Jam, Ticket in Chute, Black Mark
Printing Speed: 90mm/Second (3.5"/Second)
Print and Present Time: 2.2 Seconds
Printing Width: 62mm (True Near-Edge Printing)
Storage: 300 Tickets
Resolution: 8 dots/mm (203dpi)
Firmware: Application in Memory is Reprogrammable (via Flash BIOS)
Self Test: Yes
Page Mode: Full Page Mode Printing (Simultaneous 4 Orientation Printing: 0°, 90°, 180°, 270°), Line and Box Draw Printer Resident, Bitmap Graphics, Printer Resident (Stored in Flash) Graphics
Paper Loading: Manual
Paper Feed: Auto Load
Media: Direct Thermal, Top Coated, Fanfolded and Perforated
Paper Specification: 66mm W x 156mm L 4.5 mil, 1 Color/2 Colors
Bezel: Lighted, Two High Current Ticket Printing Bezel Control Ports
User Interface: 4 LED Indicators, Paper Advance Button (located on the printer)
Upgrade Port: Allows for Printer Upgrades via Rear or Internal USB Upgrade Port
Cabinet: Lockable; Available in Black, Silver, Carbon Fiber, Burl Wood; Custom Colors Available with OEM Quantity Orders
Hot Swappable: 100%
Printing Resources
Template Capacity: 4MB; Stores Hundreds of Clip Art Objects & Thousands of Graphic Templates
Graphic Storage: 4MB
Color Printing: Red on Black and Blue on Black are Available. Other Colors can be Supported as the Print Media Becomes Available. Color Selection is Controlled Through the TCL™ Language.
Characteristics
Printer Languages: TCL Printer Language (Page Description Language) Subset of ESCP2
Fonts: 8 (2.5 cpi, 3.3 cpi, 4.0 cpi, 5.5 cpi, 5.6 cpi, 7.3 cpi, 10.1 cpi, 20.5 cpi)
Font Scalability: May Be Independently Scaled from 1x – 7x in Both Height and Width
Bar codes: PDF-417, Interleaved 2 of 5, Code 39, UPC-A, UPC-E, UPC-E+2, UPC-E+5, Codabar, EAN-13, EAN-8, Code 128, MSI
Memory: 8MB with 512K RAM
Interface
Communications: Bi-directional RS232C USB 2.0 Game Interface (Full Speed of 12Mbps) with Separate USB Download Port, GSA Compliant
Environmental
Operating Temperature: 5°C to 50°C
Storage Temperature: -20°C to 75°C
Operating Humidity: 5 to 85% RH Non-Condensing
Reliability
Maintenance: Annual Print Head Cleaning Required
Print Head Life: 100km Min. (656,000 Tickets Based on Standard Size TITO Tickets)
Certifications: ISO 9001, CE Certified, RoHS
 |
| Contact your Suzo-Happ Sales Representative for Pricing |
| Part Number |
|
|
FutureLogic CouponXpress™ Printer |
|
