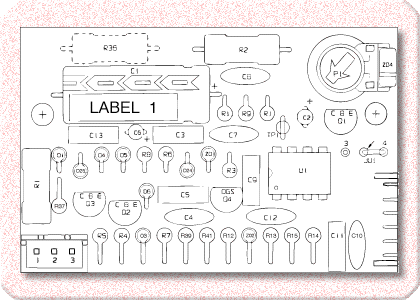

Replacement Parts for CC-33 & CC-37 Comparitor Board

Replacement Parts
for CC-33 & CC-37
Comparitor Board


Ref. No. 09270024


Part No.

Position No.

Description

Price per ea.

C12

Capacitor, 560pF, Disc, 1KV

C2, C6,

Capacitor, 1uF, Tant, 35V, K, Rad

C3, C5, C9, C11, C13

Capacitor, .1uF, Poly, 63V, K, Rad

C4, C7, C8, C10

Capacitor, .01uF, Ceramic, 25V

Diode, 1N4003, Rectifier, 240V, 1A

D2, D6, ZD3

Not Used

D3, D4, D5, D24, D25

Diode, 1N914B, Signal, 100V

JST Header, 3 Pin

JST Header, 6 Pin

JU1

Jumper Wire, 1/4 Watt, 22-24 AWG

Label1

Label

35-0261-00

Pot, 1K, CF, 1/4W, 5%, 1-Turn

PCB1

PCB, Blank, Control

Xistor MPS2907A

Resistor, 75, MO, 1W, 5%

66-0337-00

R13, R14, R15

Resistor, 100K, CF, 1/4W, 5%

66-0317-00

R12

Resistor, 2.2K, CF, 1/4W, 5%

66-0352-00

Resistor, 270, CF, 1W, 5%

66-0321-00

R3, R4, R5

Resistor, 4.7K, CF, 1/4W, 5%

R37

Resistor, 1.2K, CF, 1/4W, 5%

66-0325-00

R39

Resistor, 10K, CF, 1/4W, 5%

R41

Resistor, 180K, CF, 1/4W, 5%

TP1

Test Point TP-1040109 PCB

ZD4

Zener Diode, 1N5232B
