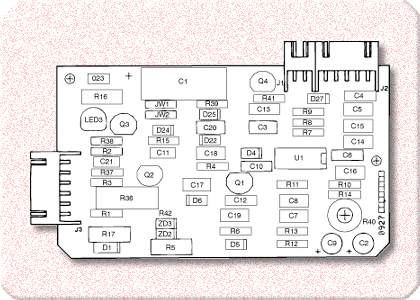

Replacement Parts for CC-16D Comparitor Board

Replacement Parts
for CC-16D Comparitor Board


Ref. No. 09270126


Part No.

Position No.

Description

Price

C14 Thru C20

Ceramic Capacitor 150pF, 100v

62-0541-00

C2, C9

Radial Capacitor 1uF 35v

C21

Axial Capacitor 27pF 100v

Ceramic Capacitor 560pF 100v

C4, C6, C10, C12, C13

Radial Capacitor .1uF 630v

C5, C7, C8, C11

Ceramic Capacitor .01uF 50v

Diode 1N4003

68-0451-00

D4, D5, D6, D22,
D23, D24, D25, D27

Diode 1N914B

Header 2-Pin JST S2B-XHA

JW1, R42

Not Used

JW2, R1

Jumper 0 Ohm Resistor

LED 3

Green LED

PCB 1

PCB, Blank, Control

Xistor MPS2907A

66-0317-00

R10, R13

Resistor 2.2K CF 1/4W, 5%

R14

Resistor 16K CF 1/4W, 5%

R17

Resistor 75 MO 1W, 5%

66-0321-00

R2, R3, R6

Resistor 4.7K CF 1/4W, 5%

66-0363-00

R36

Resistor 150 CF 2W, 5%

R37

Resistor 1.2K CF 1/4W, 5%

R38

Resistor 1.5K CF 1/4W, 5%

66-0325-00

R39

Resistor 10K CF 1/4W, 5%

35-0261-00

R40

1K Pot CF 1/4W, 5% 1-Turn

R41

Resistor 180K CF 1/4W, 5%

66-0352-00

Resistor 270 CF 1W, 5%

66-0337-00

R7, R8, R9

Resistor 100K CF 1/4W, 5%
