Convertible Coin/Currency Door System

Convertible Coin/Currency Door System


Happ introduces the First Flexible coin door system that changes with your needs!

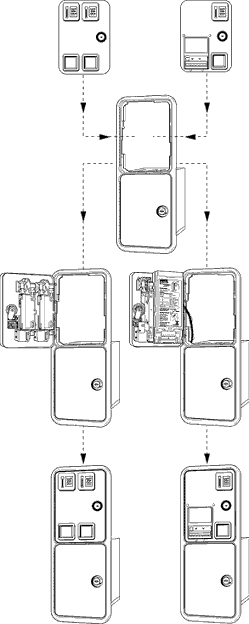

The Convertible Coin/Currency Door System from Happ is designed with Flexibility in mind. The upper door of this new innovative coin door is designed to be easily removed and converted to various door combinations on order to maximize your potential earnings. Whether it be a 2-Coin Entry, 1-Coin Entry with or without Validator; conversion is as easy as removing 4 screws and installing the upper door of your choice. For easy identification purposes, each Convertible Coin/Currency Door System is identified with a yellow label just under the lock inside the upper door.

Be certain to exercise your Flexibility on your next game simply ask for it by name, Convertible Coin/Currency Door System exclusively from Happ.

*Will also work with Wells-Gardner/Coin Controls Frame

To receive additional information, contact Happ at
106 Garlisch Drive, Elk Grove, IL 60007 USA
Toll Free Phone (888)BUY-HAPP (289-4277)
or Toll Free Fax (800) 593-HAPP (4277)
Phone (847)593-6137 Fax (847)593-6137

you can also reach us at info@happcontrols.com

UPPER DOOR ASSEMBLIES

42-7196-00

Upper Door Assembly
2 Coin Entry ($1.00 and $.25)

42-7199-00

Upper Door Assembly
1 Coin Entry ($.25) Validator Cutout with Blanking Plate for use with MEI
(300 & 500 Bill Capacity)

42-7198-00

Upper Door Assembly
1 Coin Entry ($.25) W/ MEI AE2451-U3E
($1, 5$) Validator
(300 Bill Capacity)

42-7197-00

Upper Door Assembly
1 Coin Entry ($.25) W/ MEI AE2451-U5E
($1, 5$) Validator
(500 Bill Capacity)

For Printing Purposes please use this PDF File

REAR MECH HOLDER SYSTEM

All Happ Coin Doors feature our exclusive mech holder design:

"Universal" Patented one-piece mech holder, fits all known 3"x 5" mechanical and electronic acceptors on the market

No removable locking bar to get lost

Durable nylon plastic

Loosen thumbscrews and lift metal clips	Insert/Remove coin mechanism as shown	Slide metal clip down and tighten 2 thumbscrews
