Deltronic Ticket Dispensers

Deltronic Ticket Dispensers

Blanking Plate (42-3394-00) Available

"Quick Release" face plate

You can "snap out" one ticket dispenser and immediately
replace it with another in just seconds.
No tools necessary
Easy access to front of rollers and ticket guides
Bottom Metal ticket guide
Foolproof braking system is easily adjustable
Optical sensor dust cover reduces maintenance
Validation "Diamond" mark identifies tickets
Adjustable ticket stop
Compact and lightweight - 3"W x 4"H x 5 ½"L, 2 ¼ lbs.
Redemption Tickets

Mounting View

Part Number

Price per ea.

42-0544-00

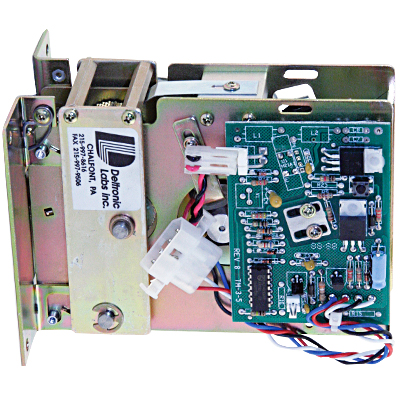

Deltronic Labs DL-1275 Continuous Type

42-0547-00

Deltronic Labs DL-4-S-S Pulse Type

Replacement Parts for Deltronics Ticket Dispensers

Deltronics P/N

Suzo-Happ Part No.

Description

Price per ea.

BIN-TICKET/AD

42-0539-00

Ticket Bin (mounts to floor)

CHIP-74C14/PC/

43-0759-00

Chip 74C14

43-0759-00

DL-4-P-S

GUID-BOTTOM/TD/MET

42-1153-00

Guide Bottom Metal for Ticket

GUID-TOP/TD/MET

42-1154-00

Guide Top Metal for Ticket

HARN-YOGI2/YB

42-3175-00

Harness for Yogi Board

HDWR-AD

49-0798-00

Hardware Kit

PANL-FRONT/TD/PEM

42-3174-00

Quick Release Face plate

PCBD-1275/TD

DL-1275

Pcb Only for DL-1275

PCBD-4PS/TD

DL4-PS

Pcb for DL4-PS

PCBD-4SS

49-2044-00

PC Ticket Board for DL-4-SS

PCBD-ADJUST/AD

Pcb Assy Interface for DL-1275 (2A)

RM-MOTOR/TD/

80-A-4766

Motor

SENS-H21A1/TD/

42-3263-00

Opto Sensor H21A1

TRN-D40K1/XX/

43-0757-00

Transistor D40K1

YOGI KIT

42-3225-00

Yogi Kit (complete w/ Pcb DL1275 & Harness Face Plate)

PCBD

42-3674-00

Yogi II PCBD for Deltronics
