Filters specially designed to protect electronics from contaminants like smoke, dust, dirt, debris and carpet fibers from the air intakes on slot machines, vending machines, arcade games, ATM’s, kiosks and computers
3M HAF-E filters utilize novel microstructured features shaped in a hollow triangle pattern (figure 1) to increase filter surface area to allow high air flow rates while minimizing pressure drop across the filter. Filter effectiveness is maximized by utilization of 3M’s proprietary electrostatic filter surface to attract and capture fine particulates and smoke while providing a low pressure drop
Keeps your machines running clean and cool (filter only contributes ≤ 5 degree F increase under normal conditions)
Filter system protects machine from most contaminants and provides for a reduction of the labor costs required for weekly and or monthly preventative maintenance cleaning of a device interior
Improve air quality for your games and avoid failures due to hardware overheating
Initial low flow resistance (maximized air ventilation)
Improve air quality for casino guest’s right at the machine level

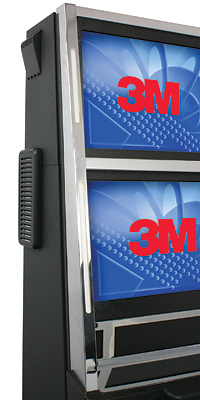

Easy to install on outside of slot machine cabinet over existing “air intake” area using 3M VHB tape
For maximum effectiveness, change filter every three months (depends on conditions)
Filter change can be performed with no special tools and does not require taking the equipment out-of-service
Durable Black plastic frame with White High Air Flow (HAF-E) Filter
Size: 5.1” W x 10.7” L x .90” Thick
Part Number
Description
Price per ea.
3600B
3M High Air Flow Electrostatic Filter System Kit (Mounting Bracket + Filter)
