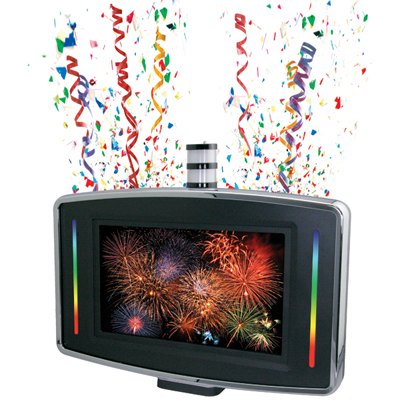

Celebration Video Topper
 |
 |
 |
| Compact Flash Card & USB Input |
 |
| Connectors |
It is time to add some Celebration & Excitement to your Casino floor!
- This innovative topper design creates a new level of excitement on your casino floor and stimulates additional game play
- Topper interfaces into the SAS line to detect a hand pay signal from the slot machine and when the selected level of hand pay is achieved the topper triggers a "Celebration Event"
- Celebration Event options include ANY or ALL of the following:
- Confetti launcher throws out bursts of confetti
- Loud 8 Watt Stereo audio celebration alarm/sounds thru two 2" x 4" speakers
- Standard or customizable videos on the 15.6" LCD (1366 x 768 resolution)
- Flashing multi-color RGB LED’s on both sides of the LCD
- Event Movement Modules that raises and lowers event attraction modules,
such as LED Tubes, Flashers, etc. from within the
topper
- 15.6" LCD driven by Network Digital Signage Player
- 10/100M Ethernet with RJ-45 connector
- Storage on Compact Flash (CF) card up to 32GB (sold separately - 96-0046-00 for 2GB)
- NTP, FTP Client, HTTP Client
- Download Performance over 300KBps with intranet HTTP server (CF Card: Sandisk Extreme IV)
- Playback Formats of SD Video (1366x768): MPEG-1, MPEG-2, MPEG-4, Divx up to 720p
- Audio Formats of WAV, MP3 (32k – 320k bps)
- Image Format of JPEG (max resolution 5120x3840)
- Remote Control
- Remote Control functions of Network setup for client IP, Server IP and other settings
- Bundled Software for Windows XP/Vista to load, control and monitor client’s status and activity
- RSS feed capable
- Includes several Celebration videos that can be further customized for fee by video production company
- Translucent bezel on sides of LCD contains 24 ultra-bright Nichia RGB LED's for a multi-colored light show
- Pre-programmed with unique flashing patterns and different color combinations
- Backlight graphic panel can be substituted in place of 15.6" LCD
- Front of video topper has ability for custom branded graphic to be inserted

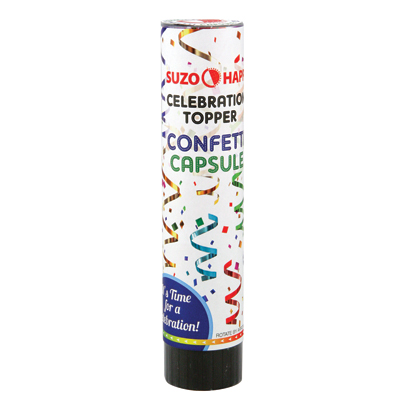

- Confetti capsules are sold separately (95-0124-00) are spring loaded (safe – no Fireworks) and sprays over twenty color stripes with six colors and colorful effects for 13-19 feet (4-6 meters) in the air
- Body is constructed of black UL-94 VO flame resistant plastic
- Requires +12vdc
- Three different mounting base adapters available (sold separately) - Flat, Round, or Slant
- Base harness, power supply (RE251-669-01USA, 2 required per topper), and compact flash memory card (96-0046-00) are sold separately
- Tower light optional
- Patent Pending
Resources For Creating Custom Topper Graphics:
 Backlight Graphic Panel Dimensions (PDF)
Backlight Graphic Panel Die Line (PDF)
Front Panel Bezel Insert Dimensions (PDF)
Front Panel Bezel Insert Die Line (PDF)
|
DIMENSIONS
| Contact your Suzo-Happ Sales Representative for Details & Pricing |
 |

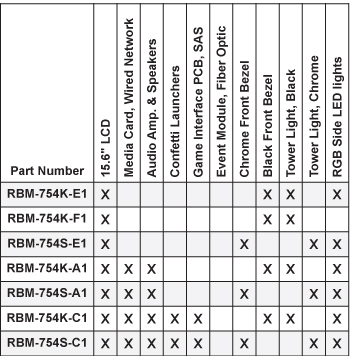

| Part
Number |
|
Price
per ea. |
|
Celebration Video Topper Confetti Capsule, Refill |
|
|
Power Supply for Celebration Video Topper |
|
|
Compact Flash Memory Card 2GB |
|
|
Celebration Topper Base Assembly - Flat |
|
|
Celebration Topper Base Assembly - Radius 260 |
|
|
Celebration Topper Base Assembly - Slant Angle |
|
|
|
