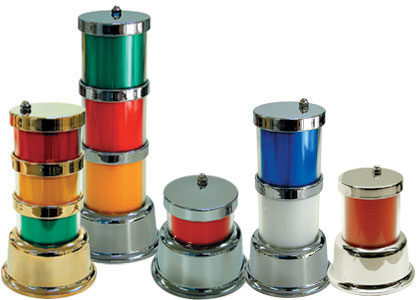

Classic Tower Lights - Including 1 Tier, 2 Tier, or 3 Tier Tower Lights in Standard or Mini Size

Classic Tower Lights

Two different lens heights to accommodate your cabinet design
Standard version is for upright cabinets, Mini for sit down models
Both Standard and Mini versions available with chrome or gold plating
Available with one, two or three lights; 6 different colors for various combinations
Bag containing one of each color (red, orange, yellow, green, blue and white) insert included for each tier
White shield foil made from special heat resistant Formex material
Standard Molex plug and harness included
Optional 12V 10mm wedge base LED replacement (91-1068-00)
All Classic Tower Lights are standard including UL approved wiring, separate ground strap and fitted with 12V – 3W 10mm wedge base lamps. Standard Molex plug and Harness Included

WIRING: CONNECTOR IS A 4 CIRCUIT 2 X 2 MOLEX .O93 PLUG 03-09-2040 (HAPP 43-1105-00) WITH MALE PINS 02-09-2118 (HAPP 42-0721-00). MATING CONNECTOR IS A HAPP 43-1107-00 RECEPTACLE AND 43-0144-00 FEMALE TERMINAL.
PIN 1 - BLACK - +12 VOLTS
PIN 2 - RED - 2ND LAMP FROM THE BOTTOM.
PIN 3 - BLUE - BOTTOM LAMP
PIN 4 - YELLOW - 3RD LAMP FROM THE BOTTOM.
CONNECT RING TERMINAL ON BRAID TO EARTH GROUND INSIDE THE
MACHINE.

Design Your Tower Light with the Matrix Below
Size:
Frame Finish:
Tiers:

If Part Number or Configuration is not Available please contact your Sales Rep.
