RGB Tower Light Topper


Pictured with Classic Tower Light (Sold Separately)

Pictured with WMS, Aristocrat, & Bally Tower Lights (Not Included)

Designed to be mounted on top of any standard round classic tower light with the included special top mounting bracket

Works on any standard round tower light that has a diameter between 1.98" (50.29mm) and 2.00" (50.29mm)

Great for advertising special machine features such as Multi-Denomination, Ticket-In Ticket-Out, Hot New Game, Server Based Gaming, etc.

Translucent bezel with 20 ultra bright Nichia multi-color RGB LED’s provide light output for a elegant multi-colored lightshow

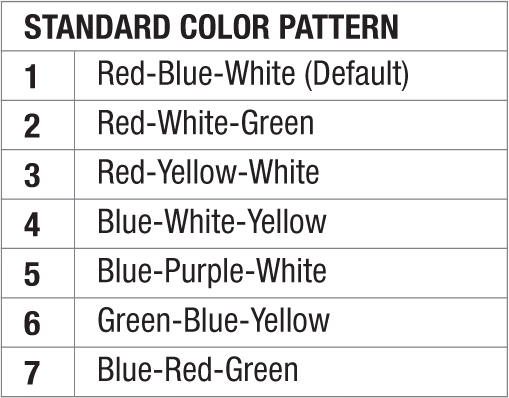

Pre-Programmed with 8 unique flashing patterns and 7 different color combinations (104-08000)

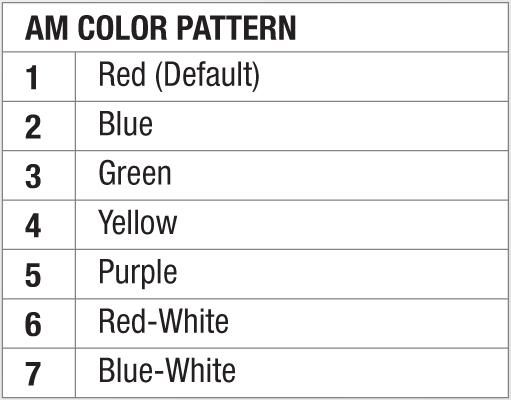

Alternative Solid color pattern version available (104-08000-AM)

Backlit by 9 white high power Nichia LED’s

Operates on +12vdc power

Comes with dual sized hex thumb nut that has English (6/32" Thread) and Metric (M4 Thread) for easy installation

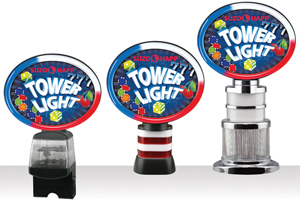

Several optional base/cap adapters make it easy to use on other styles of tower lights

WMS Bluebird I (PR020-670-03)
Aristocrat Veridian (95-2860-00)
Bally Super Candle (95-0034-00)

Optional power harness 11-2801-00 makes it easy to install on existing games by simply tapping into +12vdc and ground or simply use the power supply 80-0414-10 into the service outlet inside of machine

Artwork panel and tower light are not included

Durable flame retardant UL94 V0 ABS plastic housing

Small in size: 7.64" W x 6.83" H x 2.34" D

Towerlight Topper Manual (PDF)

Towerlight Topper Die Line (PDF)

Towerlight Topper Plexi-Glass Dimensions (PDF)

DIMENSIONS

VIEW VIDEO OF TOWERLIGHT TOPPER

ACCESSORIES

11-2801-00 80-0414-10 View All Printed Plexi Options
for Tower Light Topper

PR020-670-03
Adapter for WMS Bluebird I
Tower Light
95-2860-00
Adapter for Aristocrat Veridian
Tower Light 95-0034-00
Adapter for Bally
Super Candle

RGB Tower Light Topper Mounting Instructions for Bally Super Candle using the Adapter (PDF)

RGB Tower Light Topper Mounting Instructions for Aristocrat Veridian Tower Light using the Adapter (PDF)

Part Number

Price per ea.

104-08000

RGB Tower Light Topper with Standard Color Patterns

104-08000-AM

RGB Tower Light Topper with AM Color Patterns

80-0414-10

Power Supply +12VDC 2.5A for RGB Tower Light Topper

11-2801-00

Power Extension Harness Kit for RGB Tower Light Topper

PR020-670-03

RGB Tower Light Topper Base/Cap Adapter
for WMS Bluebird I Tower Light

95-2860-00

RGB Tower Light Topper Base/Cap Adapter
for Aristocrat Veridian Tower Light

95-0034-00

RGB Tower Light Topper Base/Cap Adapter
for Bally Super Candle
